One advantage is the simple assembly through the integrated flange attachment.
#TWO STAGE EJECTOR MOULD PLUS#

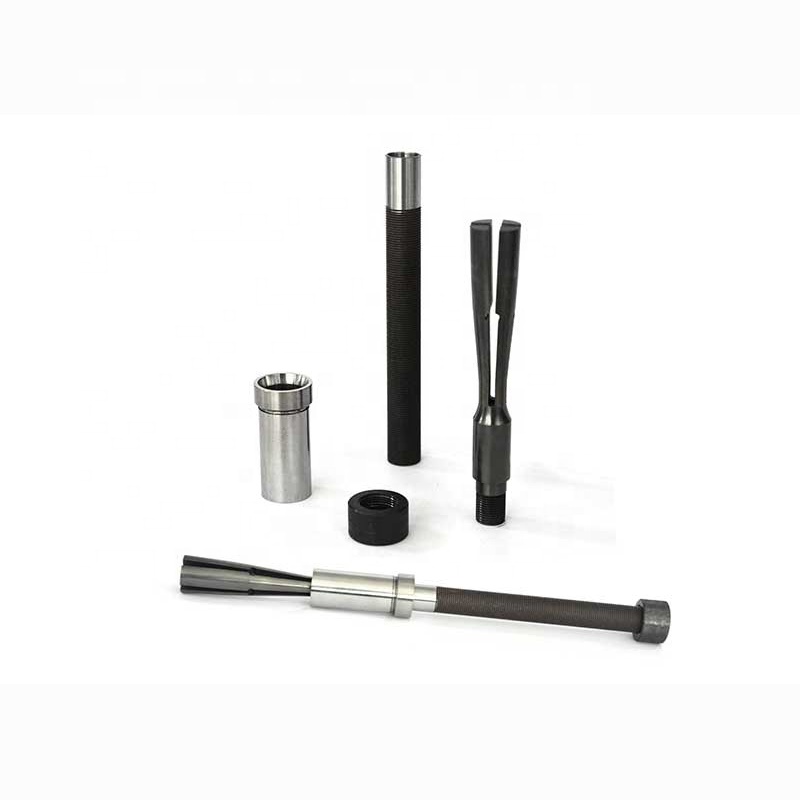

It offers the same motions plus improved locking. The Z1691 two-stage ejector is an extension of the classic Z169. Z169 two-stage ejector installation Z169 Two-stage ejector installation Z169 two-stage ejector drawing Z169 two-stage ejector drawing The accurate movements guarantee consistent part quality without compromise. Automatic and precise holding and opening mechanisms allow independent movement between two plates. The Z169 two-stage ejector is the classic solution for activating a stripper plate. Select appropriate specifications according to the load requirement of the die. Otherwise, the product is likely to be damaged. The installation stroke needs to be calculated accurately. It is convenient for installing processing machinery interlocking design so that it is safe and reliable. The surface with coating treatment, higher wear resistance create a longer lifespan.Important parts are made of SKD11 materials and adopt the high-quality heat treatment process, being more wear-resistant.This secondary ejection mechanism is simple in structure and convenient in installation and needs a minimal installation space.Interlocking mechanism design, safe and reliable.The Z169/Z1691/Z1692/Z1695… two-stage ejectors are the classic solution for activating a stripper plate. The high layer hardness and low friction values of the coated two-stage ejectors significantly improve the life of the mold and thus makes a major contribution to increasing productivity and lowering costs in the production process. All two-stage ejectors are now available with DLC-coated functional surfaces. The two-stage ejecting structure is a structure in which it is possible to carry out the ejecting operation twice at the time of ejecting the molded article from the core.Īlthough ejection is done only once in the usual injection mold, since in the case of the two-stage ejecting structure it is possible inside the mold to carry out ejection two times with a time gap between them, this is a mechanism that is very convenient in cases in which the molded item cannot be taken out the mold with only one ejecting operation.Ī two-stage ejector, It is offered a variety of individual possibilities for reliable motion control and molding during the injection molding process.
Two-stage ejectors are used where two ejection sequences are required, for example, to demould undercuts with inclined cores, or to ensure that slides do not collide with ejector pins. Description What are Parting Line Sequence Control Two-stage Ejectors?
